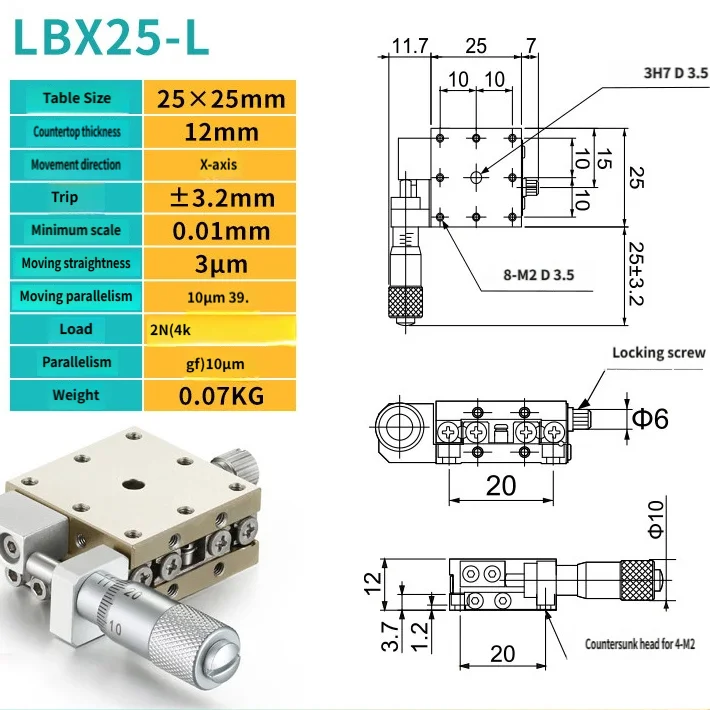

Structural Details
Adjustment Mechanism:
- Each axis is equipped with a micrometer-style fine-tuning head (gradient range 0-50, each division corresponding to 0.01mm). Rotating the knob drives the slide via a screw, providing controllable adjustment precision.
- The knob surface has a knurled anti-slip design, preventing slippage during manual operation.
Guide Rail and Slide:
- A linear ball bearing guide pair (containing a steel ball circulation structure) is used, with a low coefficient of sliding friction (≤0.004), ensuring smooth adjustment and minimal precision decay over long-term use.
- The clearance between the slide and the base is extremely small, reducing "backlash" (ineffective travel when adjusting in the opposite direction).
Locking Device:
- A locking knob (usually a flat/knurled knob) is provided on the side. After tightening, it secures the slide via a locking block, preventing positional shift due to vibration during operation.
Mounting Interface:
- The table surface features M3/M4 threaded mounting holes (array + center hole) to accommodate tooling/workpieces of different sizes.
- The base also has pre-drilled mounting holes on the side/bottom for mounting to the equipment frame or worktable.
III. Performance Advantages
High Precision: Repeatability ≤0.015mm, suitable for precision applications such as optical alignment and micromachining.
High Rigidity: The combination of a stainless steel body and ball bearing guides can withstand certain vertical/lateral forces and is not easily deformed.
Durability: The steel balls in the ball bearing guides are hardened, ensuring a service life of over 1 million sliding cycles.
IV. Applicable Scenarios
Research Laboratories: Microscope stage positioning, precision sample adjustment;
Industrial Inspection: Positioning of workpieces for image measuring instruments and laser thickness gauges;
Automation Equipment: Auxiliary fine-tuning of small modules, station calibration for dispensing/welding equipment;
Teaching Equipment: Demonstration of precision mechanical principles, displacement control experimental platform.
