[Industrial-grade Precision] Cantilever Tapping Auxiliary Tool CNC Aluminum Profile Tapping Machine Support

• Handling time>> Priority is given to delivery after payment
• 💯Payments Via PayPal® or Credit Card
• 🌈 Guarantee>> We have a a risk-free 90-day guarantee
• 🎯Shipping takes different depending on location
• 99.6% Reviewers Buy 2 or more!

🌟 Key Selling Points

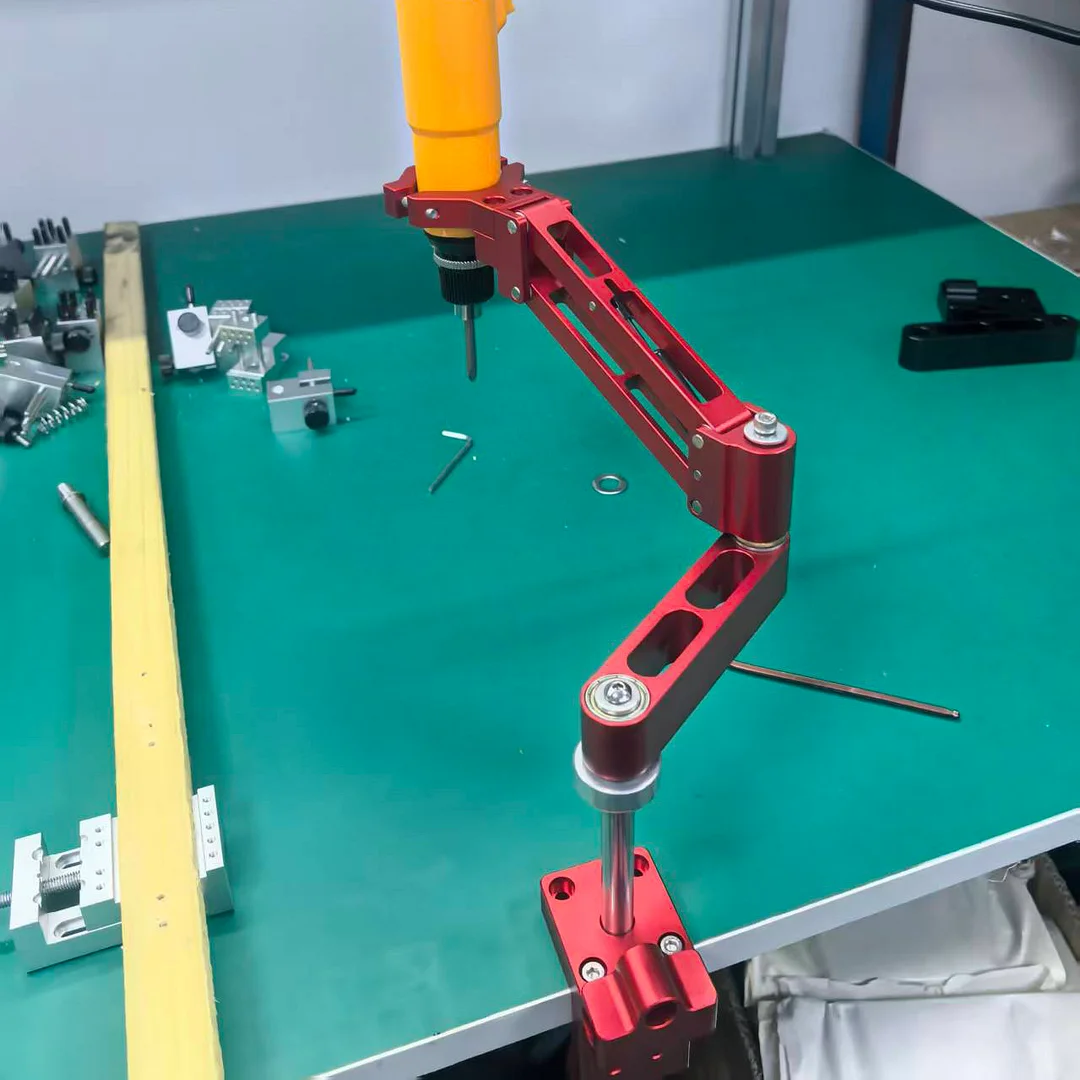

Zero-Gravity Suspension Support: A unique robotic arm balancing structure precisely counteracts the weight of the electric screwdriver/tapping machine, creating an almost weightless operating experience, significantly reducing worker fatigue and preventing hand strain during extended use.

360° Omnidirectional Flexible Adjustment: A multi-joint aluminum alloy cantilever design supports horizontal rotation, pitch swing, and fine-tuning of height, allowing precise positioning of any tapping point and adapting to complex workpieces and confined spaces.

High-Strength CNC Aluminum Alloy Material: The entire machine is made of aerospace-grade aluminum alloy, precision machined using CNC machining. The anodized surface is wear-resistant and corrosion-resistant, ensuring high structural rigidity and preventing deformation or wobbling over long-term use.

Universal Quick-Mount Interface: Compatible with mainstream electric screwdrivers, tapping machines, and electric screwdrivers on the market. Quick assembly and disassembly require no additional modifications; ready to use immediately.

📋 Product Core Parameters

Main Body Material: 6061-T6 Aluminum Alloy (CNC Precision Machining)

Surface Treatment: Hard Anodizing

Number of Joints: 3-Segment Multi-Joint Structure

Adjustment Range: Horizontal 360° rotation, ±90° tilt, height adjustable range approximately 300-500mm

Load capacity: Maximum load 5-6kg (compatible with mainstream electric tapping machines/electric screwdrivers)

Installation method: Desktop clamping/table mounting (two mounting accessories available)

Applicable tools: Electric screwdrivers, pneumatic tapping machines, small electric drills, etc.

Total weight: Approximately 1.5kg (lightweight and easy to move)

🎨 Detailed design breakdown

1. Robotic arm structure: A balance between stability and flexibility

• Hollowed-out lightweight design: The arm body is CNC machined with a hollowed-out design, significantly reducing weight while ensuring structural strength, resulting in smoother operation and preventing inertial swaying.
• High-precision bearing joints: Key connection parts use deep groove ball bearings and damping adjustment screws, allowing for free angle locking and preventing displacement after positioning, ensuring tapping accuracy.
• Quick-release clamp: The top tool chuck uses a quick-release locking design, allowing one-button locking/releasing of the tool, compatible with electric screwdrivers/electric screwdrivers of different diameters.

2. Base and Installation: Stable and Prevents Shifting

Dual Installation Modes:

• Tabletop Clamping Version: Adapts to workbenches with a thickness of 0-50mm, no drilling required, quick clamping without damaging the work surface.
• Tabletop Fixed Version: Secured with expansion screws/bolts, suitable for long-term fixed workstations, offering enhanced stability.

Height Adjustment Column: Central stainless steel lifting column allows for quick adjustment of tool operating height, adapting to different workpiece sizes.

3. Safety and Durability: Industrial-Grade Quality Assurance

• Fall Protection Safety Rope: Pre-installed safety attachment point at the top, compatible with wire rope/elastic rope to prevent accidental tool falls, protecting equipment and personnel safety.
• Wear-Resistant Anodized Layer: Hard anodized surface treatment, scratch-resistant and corrosion-resistant, maintaining a bright appearance even after long-term use, and resistant to paint peeling.
• Damping Adjustment Knob: Each joint is equipped with a damping adjustment screw, allowing for fine-tuning of tightness according to tool weight to find the most comfortable operating feel.

💡 Core Functional Advantages

✅ Improve Tapping Accuracy and Efficiency

• Eliminates hand-held shaking, resulting in higher tapping perpendicularity, reduced tap breakage, and a 30% or more increase in thread accuracy compliance.
• No continuous support is needed after positioning; a single person can operate multiple workstations simultaneously, increasing production efficiency by 50%.

✅ Reduces Labor Intensity

• Zero-gravity support allows workers to focus solely on direction, eliminating the need to contend with the tool's weight, allowing for comfortable 8-hour continuous work.
• Avoids prolonged head-down and back-bending work, protecting the cervical and lumbar spine and reducing occupational disease risks.

✅ Adaptable to Multiple Application Scenarios

• Usable in multiple industries including aluminum profile processing, sheet metal tapping, mold repair, and electronic assembly.
• Easily handles scenarios where manual operation is difficult, such as confined spaces, irregularly shaped workpieces, and high positions.

📌 Recommended Application Scenarios

Aluminum Profile Processing: Precisely positions profile holes for tapping, preventing profile deformation and ensuring thread perpendicularity.

Electronic Equipment Assembly: Uses a small electric screwdriver to assist in screw tightening, improving assembly efficiency and consistency.

Mold/ Mechanical Repair: Tapping complex mold cavities and equipment dead spots ensures safer operation.

Assembly Line Stations: Fixed workstations for long-term use and standardized operations improve product stability.
