✨ Product core positioning

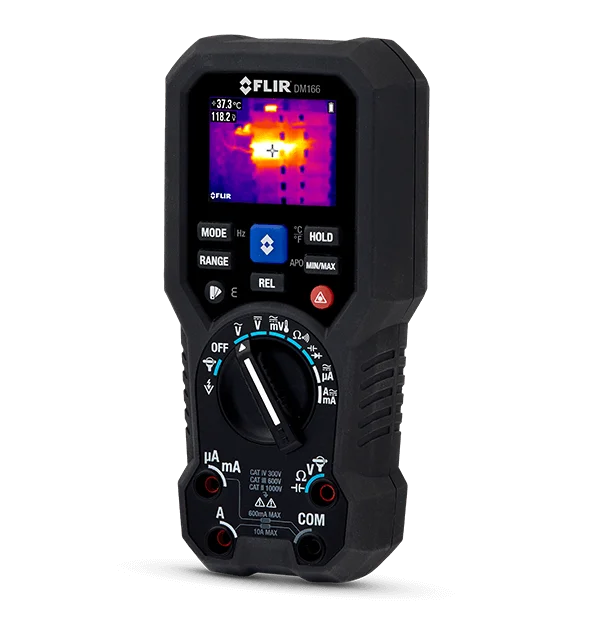

FLIR DM166 is the world's most cost-effective professional multimeter with integrated infrared thermal imaging function, specially designed for commercial electricians, automation engineers, electronic maintenance technicians, and HVAC operation and maintenance personnel. It combines FLIR's patented IGM™ infrared imaging guided measurement technology with the function of a true RMS multimeter, making electrical troubleshooting faster, safer, and more efficient. It is an all-round tool for industrial operation and maintenance, electrical maintenance, and electronic repair.
🔥 Core technology: IGM™ infrared imaging guided measurement
1. Thermal imaging core configuration
Thermal imaging sensor: equipped with FLIR Lepton® microbolometer, 80×60 pixels (4800 pixels) infrared resolution, accurately captures temperature anomalies
Temperature sensitivity: ≤150mK, can identify subtle temperature differences of 0.15℃, easily detecting early overheating risks
Temperature measurement range: -10℃ ~ +150℃, covering the working temperature range of most electrical and HVAC equipment
Temperature measurement accuracy: ±3℃ or ±3% of reading (whichever is larger), meeting professional measurement needs
Emissivity adjustment: 4-level preset + custom adjustment, suitable for accurate temperature measurement on surfaces of different materials
IGM™ Guided Measurement: The thermal imaging screen superimposes multimeter readings in real time to intuitively locate fault points without repeated contact testing, greatly improving maintenance efficiency and safety.
2. Visual troubleshooting
The thermal imaging picture is displayed on the multimeter's color screen in real time, eliminating the need to hold an additional thermal imaging camera. A single device completes the entire process of "scanning - positioning - measurement".
Quickly identify abnormal temperature problems such as overheated wiring, loose terminals, overloaded lines, faulty coils, blocked HVAC pipes, etc.
The laser positioning point is accurately aligned with the measured area to ensure that the measurement position completely matches the thermal imaging target.
| Highlighted | |
|---|---|
| IR Resolution | 60 × 80 pixels (4,800 pixels) |
| AC/DC Voltage | Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5% |
| AC/DC Amps | Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7% |
| Imaging & Optical | |
|---|---|
| Focus | Fixed |
| IR Resolution | 60 × 80 pixels (4,800 pixels) |
| Thermal image palettes | Rainbow, iron, gray scale |
| Measurement & Analysis | |
|---|---|
| AC/DC Amps | Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7% |
| AC/DC mAmps | Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7% |
| AC/DC microAmps | Range: 4000 µA Basic Accuracy: ±1.5% |
| AC/DC mVolt | Range: 600.0 mV Basic Accuracy: ±1% / ±0.5% |
| AC/DC Voltage | Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5% |
| Capacitance | Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 2.000 mF ±2.0% 10.00 mF ±5.0% |
| Continuity check | Between 30 Ω and 480 Ω |
| Diode Test | Range: 3.000 V Basic Accuracy: ±0.9% |
| Frequency Range | Range: 99.99 kHz Basic Accuracy: ±1.0% |
| Resistance | Range: Basic Accuracy: 600.0 Ω ±0.3% 600.0 kΩ ±0.5% 6.000 MΩ ±0.9% 60.00 MΩ ±1.5% |
| Temperature Range | –10 to 150°C (14 to 302°F) |
| Thermocouple | –40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C) |
| True RMS | Yes |
| VFD AC Voltage | Range: 600.0 V RMS Basic Accuracy: ±1.0% |
| Power | |
|---|---|
| Auto Power Off | Yes |
| Battery | 3 AA batteries; optional TA04 Li-Poly rechargeable battery |
| Environmental & Certifications | |
|---|---|
| Drop test | 3 m |
| IP Rating | IP40 |
| Warranty | 10 yrs on product and detector |
