The EM-Smart Flexible Fixture is the ideal solution for securing workpieces of any shape—quickly, safely, and precisely.

• 🔩 Automatic adaptation to various shapes and sizes
• 🛠️ No costly resets or manual adjustments needed
• 🚫 No downtime – switch between workpieces effortlessly
• 🧲 Flexible pin system ensures a secure, form-fitting grip
• 🔁 Compatible with all laser machines

Maximize your productivity and simplify your workflow with the clamping fixture that does it all—smart, efficient, and ready to work with any project.

Specification:

Product Name：Universal Flexible Fixture
Use area：30x79MM
Load：70KG
Pin Stroke：21MM
Pin diameter：6MM
Pin material：304 stainless steel
Product weight：1.57KG
Application: conventional pieces laser marking

Core Functions & Design Highlights

【Arbitrary Shape Contouring Clamping, Eliminating the Need for Custom Tooling】

• Each stainless steel floating pin extends and retracts independently, automatically adapting to the workpiece's contour, curved surface, and irregular structure, perfectly replicating the workpiece shape.
• After locking the handle, the floating pin position is completely fixed, forming a 1:1 matching contouring clamping surface with the workpiece, enabling rapid clamping of any irregularly shaped workpiece.
• Small batch workpiece processing eliminates the need for separate molds and customized tooling, significantly reducing tooling costs and changeover time, and improving production efficiency.

【Precise Repeatability Positioning, Zero Error in Batch Processing】

• Once the workpiece position is locked, the floating pins form a fixed contouring positioning, eliminating the need for readjustment during re-clamping. The position is completely consistent, with no gaps in any direction.
• Perfectly adaptable to batch clamping and inspection scenarios, offering high repeatability positioning accuracy, significantly improving the efficiency and consistency of CNC machining, laser marking, and coordinate measuring machine (CMM) measurements.
• Strong workpiece stability after clamping, with no displacement or shaking during processing, ensuring machining accuracy.

【Flexible and Workpiece-Friendly, Adaptable to Multi-Material Machining】

• 304 The stainless steel floating pin is finely polished, making flexible contact with the workpiece surface without scratching or damaging it. It is perfectly suited for clamping precision parts, thin-walled parts, and fragile parts (such as eggshells and glass pieces).
• The lightweight design of the aerospace-grade aluminum body ensures high strength while maintaining its shape and wear resistance over long-term use, resulting in a long service life.
• It is compatible with both pneumatic and manual locking modes, allowing selection based on processing needs, and is suitable for automated production lines and manual operation scenarios.

【Versatile for multiple scenarios, offering excellent value】

• CNC Machining Center: Clamping irregularly shaped workpieces, eliminating the need for tooling and enabling quick changeovers.
• Laser Marking/Engraving: Stable positioning of irregularly shaped parts, ensuring marking accuracy.
• Coordinate Measuring: Precise workpiece positioning, with error-free repeated measurements.
• Picking/Visher Installation: Can be directly mounted on vises, compatible with existing machine tools.
• It can clamp various irregularly shaped parts, from micro-sized components to medium-sized workpieces, covering multiple industries such as hardware, auto parts, 3C, and molds.

Product Structure & Material Details

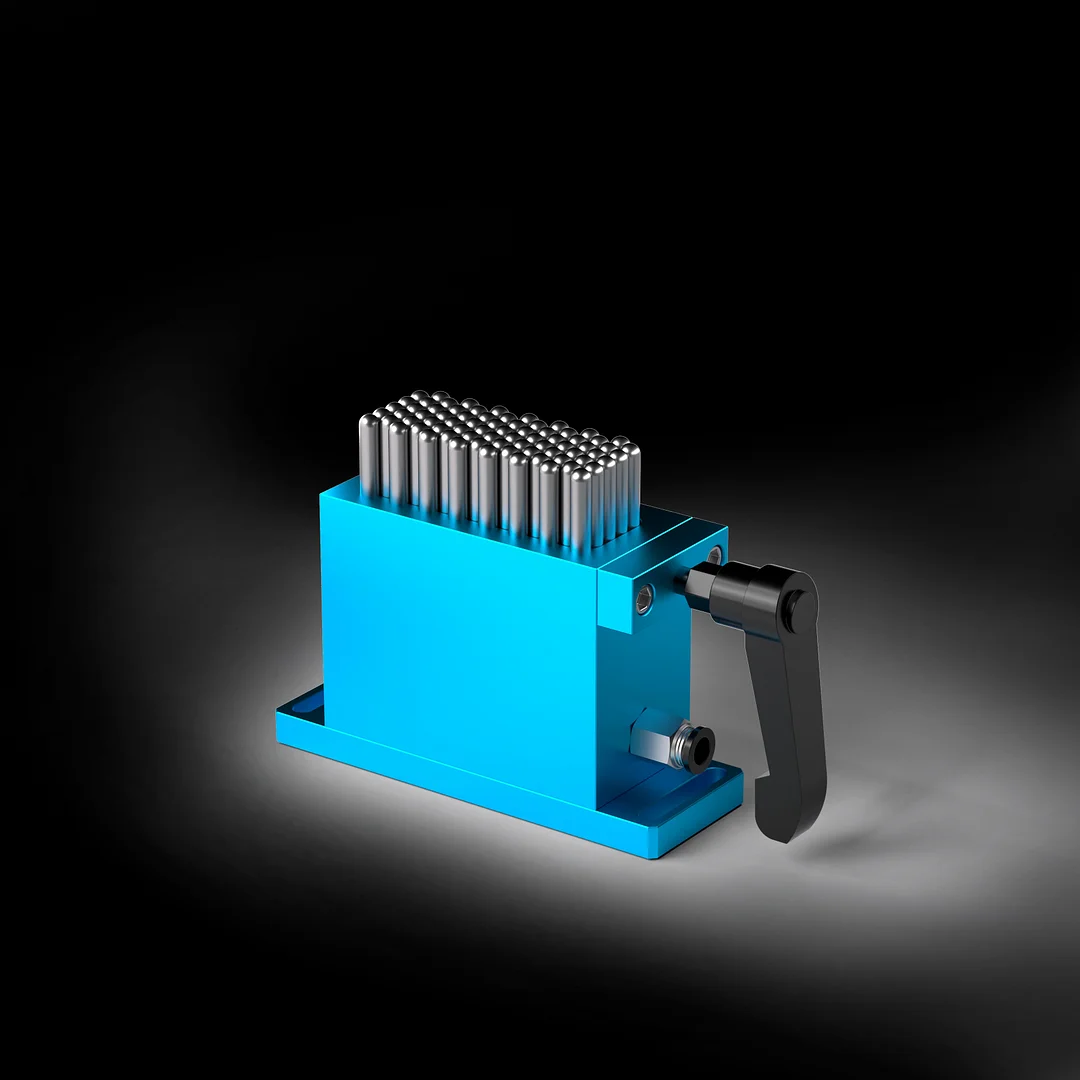

Main Structure

• Aerospace Aluminum Alloy Body: Made of high-strength aerospace aluminum, anodized for a blue, rust-resistant, and wear-resistant finish, while also being lightweight and easy to install.
• Independent Floating Pin Module: Multiple 304 stainless steel floating pins, each capable of independent up-and-down extension and retraction, perfectly conforming to the workpiece contour.
• Manual Locking Mechanism: Black non-slip handle, one-button locking, simple operation, strong locking force, preventing loosening during processing.
• Pneumatic Interface (Optional): Supports pneumatic locking, compatible with automated production lines, improving operational efficiency.
• Mounting Reference Surface: Standard mounting holes on the bottom, allowing direct installation on CNC worktables, vises, and coordinate measuring machines (CMMs).
