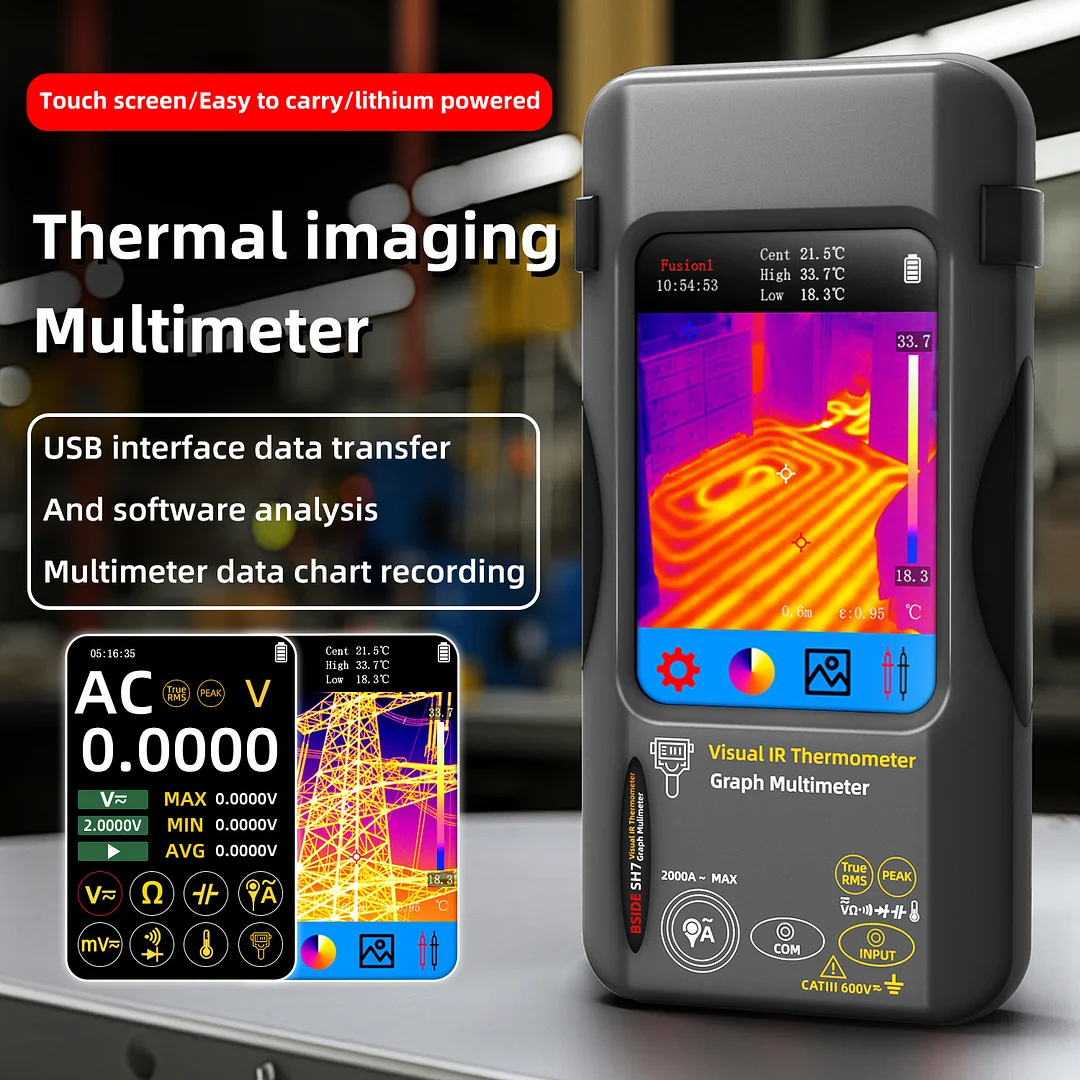

BSIDE Thermal Imaging Camera Multimeter, 320 x 320 IR Resolution with 15 Thermal Palettes, 20000 Counts with 3.98 Inch Touch LCD, Measuring Cap, AC Clamp, Temperature Diode for Electrical Home Electronic Inspection

• Handling time>> Priority is given to delivery after payment
• 💯Payments Via PayPal® or Credit Card
• 🌈 Guarantee>> We have a a risk-free 90-day guarantee
• 🎯Shipping takes different depending on location
• 99.6% Reviewers Buy 2 or more!

About this product:

• 320 x 320 Infrared Thermal Imager: The BSIDE SH7 thermal imager boasts a 320 x 320 infrared resolution, helping you detect potential problems early and reliably diagnose faults.
• 20,000-Digit Multimeter: This multimeter, integrated with an infrared thermal imager, measures AC current, capacitance, diodes, temperature, AC and DC voltage, resistance, continuity, and more.
• 15 Thermal Imaging Palettes: This thermal imaging multimeter offers 15 thermal imaging palettes to choose from: Thermal White, Thermal Black, Melting 1, Rainbow, Melting 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice and Fire, Rain, Thermal Green, Bright Red, and Dark Blue.
• 3.98-inch TFT Touchscreen: This infrared thermal multimeter features a 3.98-inch 320 x 480 color touchscreen LCD, providing an optimal reading experience and clear, wide-angle test results.
• Accurate Measurement: This thermal imaging voltmeter boasts a 25Hz refresh rate and a wide temperature range of -4°F to 1022°F.
• Flexible AC Clamp-on Current Measurement: This digital multimeter accurately measures AC currents up to 2000A using a flexible clamp-on cable. (Flexible clamp-on cable sold separately.)
• Efficient Data Storage and Export: This thermal imager can be connected to a computer via USB for further analysis. A memory card can store over 19,000 images.
• Long Battery Life: This smart digital multimeter offers exceptionally long battery life. It comes with a 2500mAh rechargeable battery and charging cable, ensuring you never run out of power during use.
• Measurement [High and Low Temperature Alarm: This infrared laser thermal imager features a high and low temperature alarm function. When the temperature exceeds or falls below the set value, the thermal imager will issue an alarm.

Features:

• Handheld Thermal Imager
• Infrared Thermal Imager with LCD Touchscreen
• Extra-Large Touchscreen Thermal Imager
• 20,000-Digit Smart Digital Multimeter
• 320 x 320 Resolution Infrared Thermal Imager
• 320 x 480 Screen Resolution Infrared Thermal Imager
• Measures AC and DC voltage, resistance, and continuity
• Measures capacitance, diodes, temperature, and AC current clamping
• Screen displays hot spot, cold spot, and center point temperatures
• Adjustable emissivity of the infrared thermal imager
• Rechargeable portable infrared thermal imager with 15 thermal patches
• Test data can be exported to a computer for analysis
• Suitable for home inspections, HVAC electrical and plumbing inspections, and boiler inspections

Specifications:

1. Infrared Thermal Imager

• Screen Size: 3.98-inch TFT LCD
• Infrared Resolution: 320 x 320
• Display Resolution: 320 x 480
• Field of View (FOV): 50.0° (Horizontal) x 50.0° (Vertical) / 72.1° (Vertical)
• Integrated Field of View (IFOV): 8.89 mrad
• Temperature Range: -4°F to 1022°F
• Thermal Sensitivity/NETD: Less than 60mK
• Refresh Rate: 25Hz
• Distance Setting: 1.0-9.8 feet
• Emissivity: 0.01-1
• Thermal Imaging Palette: 15
• Storage Capacity: 19000

2. Digital Multimeter

• Maximum Display: 20000 counts
• DC Voltage: 20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/±(0.05%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3).
• AC Voltage: 20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/±(0.05%+3); 200V/750V 0.01V/0.1V ±(0.5%+3).
• AC Current: 200A/2000A 0.1A/1A ±(1.0%+5)
• Resistance: 200Ω 0.01Ω ± (0.5%+3); 2kΩ/20KΩ/200KΩ 0.0001KΩ/0.001KΩ/0.01KΩ ± (0.2%+3); 2MΩ/20MΩ 0.0001MΩ/0.001MΩ ± (1%+3); 200MΩ 0.01MΩ ± (5%+5)
• Capacity: 999.99nF 0.01nF ±(5.0%+20); 9.999µF/999.9µF 0.001µF/0.01µF ±(2%+5); 99.999mF 0.001mF ±(5%+10)
• Temperature: -4.0 °F~2,372.0 °F/-4℉-2372℉ 33.8 °F/1℉ ± (2%+5)
• Diode: Yes
• Continuity Test: Yes
• Power Supply: 2500mAh Rechargeable Battery (Built-in)
• Dimensions: 6.654 * 3.189 * 1.055 inches
• Weight: 9.52 ounces

Package List:

• 1 x Infrared Thermal Imager
• 1 One charging cable
• One carrying case
• One user manual (Spanish version not guaranteed)
